docomap
Eye
Communication-type Drive Recorder
IX3000
Communication type drive recorder with built-in GPS and AI image analysis engine, supporting 3 cameras. In addition to 5 hazardous behaviors including sudden acceleration and deceleration, the system can also get signals when backing up. Furthermore, using the ADAS function with AI image analysis, the system can be used for safe driving.
Base Price：
Open
Monthly fee：
2,480
円/台（税込2,728円）
* Installation cost is not included.
D-TEG製 IX3000
Communication type drive recorder with built-in GPS and AI image analysis engine, supporting 3 cameras. In addition to 5 hazardous behaviors including sudden acceleration and deceleration, the system can also get signals when backing up. Furthermore, using the ADAS function with AI image analysis, the system can be used for safe driving.
Option
Internal Camera with DMS
Internal Camera
Rear Camera
*Not waterproof; must be installed inside vehicle
GNSS Positioning Satellite System
The device uses five satellite positioning systems: US GPS, Japan's MICHIBIKI (QZSS], Russia's GLONASS, Europe's Galileo, and China's BeiDou, allowing it to obtain more accurate location information.
Transmission Interval
Receiving position data every 10 seconds, you can view the vehicle route with high accuracy on DoCoMAP, making it ideal for DX data acquisition.
docomapPLUS Support
Supports the docomapPLUS application for DoCoMAP, which records operation status using a smartphone, enabling real-time recording and management of operation status linked to vehicle location information in the cloud, as well as daily operation reports and labor management.
DoCoMAP Support
In addition to real-time location information, vehicle travel tracing, operation history, and a time machine function that allows the location of all vehicles to be checked are stored for one year and can be checked at any time. In addition, rain cloud information, company and shipper information, and more can be easily checked on the map screen.
Dashboard Support
A simple and easy-to-understand administrator-only page. Location information sent from devices and operation status data sent from dedicated applications can be managed in the cloud. In addition, you can access the Dashboard anytime, anywhere from your browser to check the data.
Dangerous Driving Behavior Detection
Accurate speeds from 3-axis acceleration sensors and vehicle speed pulses can be used to detect dangerous behaviors such as speeding, sudden acceleration/deceleration, and sharp turns, and to notify the administrator. Administrators are notified and hazardous behaviors can be checked at any time from the event list.
LTE support
The device can be used within LTE areas nationwide. It is 5 times faster than the conventional communication standard (3G) and allows administrators to manage location information immediately.
ADAS/DMS functionality with AI image analysis
The drive recorder's AI image analysis engine supports safe driving through ADAS/DMS.
| Size (mm) | W95.6 × D41.6 × H105.6 |
| Weight | Approx. 188g (device body only) |
| Positioning method | GNSS (GPS、QZSS、GLONASS、BeiDou、Galileo) compatible |
| Built-in | GPS, G Sensor, Gyro Sensor |
| Recording resolution | Quad HD (1440p], Full HD (1080p], HD (720p], VGA (480p) |
| Frame rate | Up to 30 fps |
| Number of pixels | 3.68 megapixels (interior/rear camera: max. 2 megapixels) |
| Recording media | microSD card (SDHC: 16 GB to 32 GB) (SDXC: 64 GB to 512 GB) * Included: 128 GB. |
| Transmission interval | Minimum of approx. every 10 seconds |
| Communication method | LTE/3G |
| Operating environment temperature | -10℃ to +60℃ |
| Power supply voltage | 12V/24V |

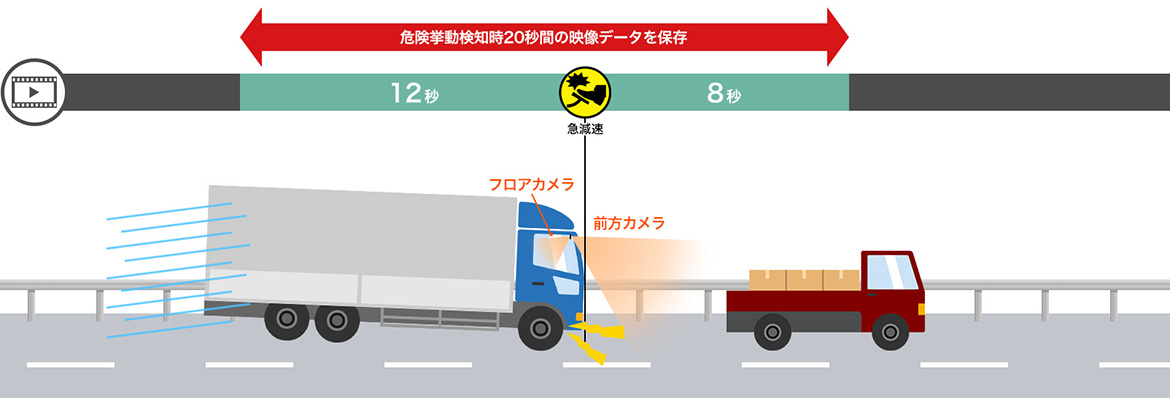

Save recorded incidents
docomapEye automatically uploads 20 seconds of video and audio to the cloud when sharp turns, sudden acceleration/deceleration, or collision is detected (12 seconds before the detection, and 8 seconds after). You can view the uploaded video at any time from the DoCoMAP screen.
Dangerous Driving Behavior Detection
Using DoCoMAP, it is now possible to prevent safety-related incidents and detect accidents.
Hazardous behaviour is detected at precise speeds using a 3-axis acceleration sensor and vehicle speed pulses. In addition, remote video acquisition is possible.

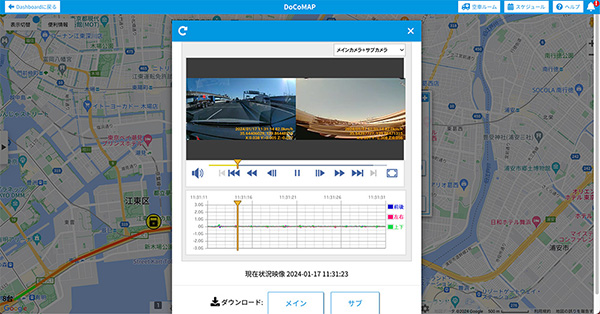

Check real-time and SD card video
You can remotely acquire and then view both real-time and recorded video from the vehicle route tracking screen.
Available when the vehicle engine is on and power is supplied to the main terminal.
Location tracking video
Current status recording

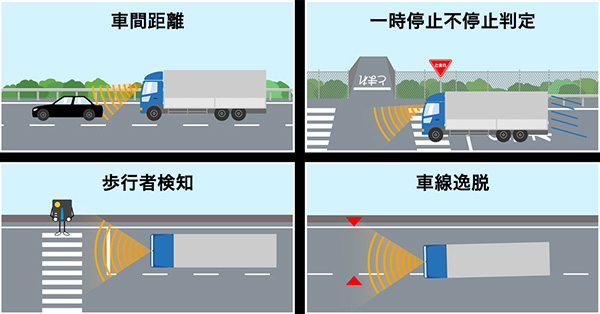

ADAS function
The AI image analysis engine built into the unit enables the system to detect distance, lane departure, and pedestrians, as well as to recognize stop signs and determine whether a vehicle has failed to stop.
DMS function
By installing the optional DMS camera, the AI image analysis engine can determine if the driver is falling asleep, looking away, using a mobile phone, or smoking.
The use of a DMS camera is required.

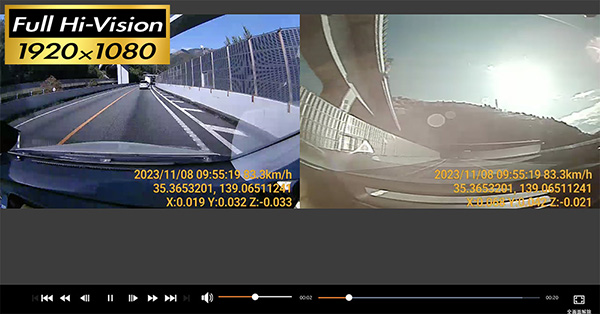

2K high-definition video, up to 3 cameras
The front camera supports Quad HD high quality for clear images. The model supports up to 3 cameras, including a rear camera and interior camera with infrared support.
Notification e-mail
When docomap Eye detects a dangerous behavior, it can immediately notify the administrator via LINE, Wowtalk, or e-mail, so that the administrator can manage crew safety in real time.
If dangerous behaviour is detected, you will be notified. In addition, you can check the recorded video by clicking on the URL.
You can view the record video of the incident on docomap VIEW.
